Electro-hydraulic Lift Table with Low Price Mobile Hydraulic Aluminum Lift

FOB Reference Price:Get Latest Price
US $2,000-4,000 / Set | 1 Set/Sets Electro-hydraulic Lift Table with Low Price Mobile Hydraulic Alu (Min. Order)
Supply Ability:
100 Set/Sets per Year Electro-hydraulic Lift Table with Low Price Mobile Hydraulic Alu
Port:
QINGDAO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XINJUXIN
Model Number:
YBC0.2-10
Lift Mechanism:
Telescoping Lift
Lift Drive / Actuation:
Electric Motor
Power:
1.5kw
Rated Loading Capacity:
200kg
Min. Lifting Height:
1.98m
Max. Lifting Height:
10m
Table Size:
1320*600mm
Overall Dimensions:
1400*850*1980mm
Weight:
640kg
Certification:
ISO
Warranty:
12 months
After-sales Service Provided:
Overseas third-party support available
Name:
Electro-hydraulic Lift Table Mobile Hydraulic Aluminum Lift
Keywords:
electro-hydraulic lift
Material:
aluminum alloy
Color:
Blue
Type:
Aluminum Alloy Platform
Voltage:
110v 220v 240v 380v Optional
Usage:
Aerial Maintenance Work
Platform:
Anti-slip Steel Plate
Control mode:
Hand Control Panel
Application:
Aerial Work
Packaging & Delivery
Packaging Details
Plywood case for aluminum lifts.
Delivery Time
10 days
Product Description

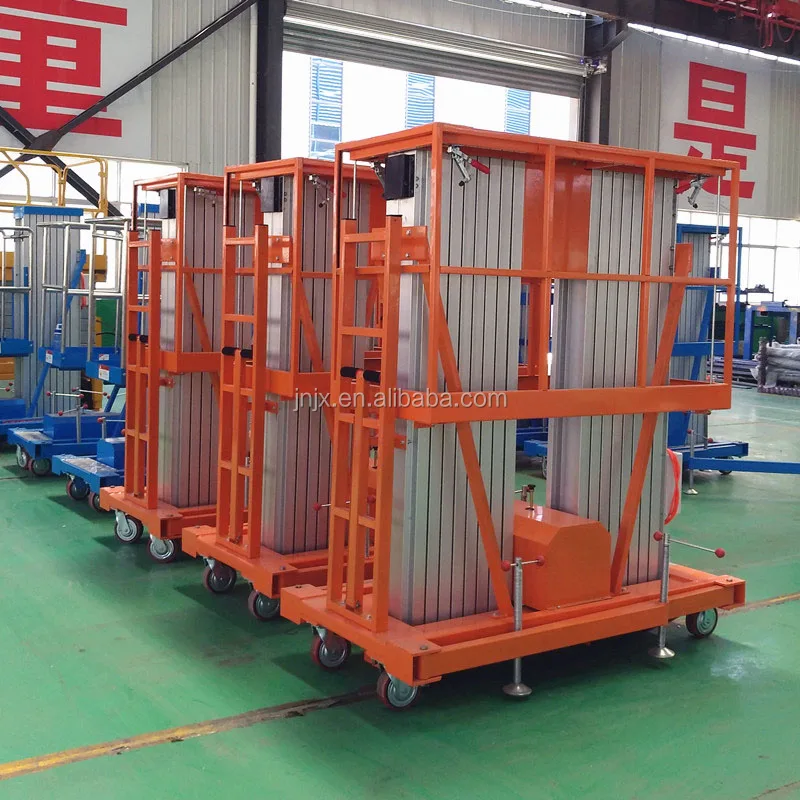

                 Electro-hydraulic Lift Table with Low Price Mobile Hydraulic Aluminum Lift

Brief  Introduction

· It adopts high strength aluminum alloy, light weight, compact main body,easily pushed around to

the designated sites· Platform height : 4m, 6m, 8m, 10m etc, the max height can reach 20m.

· Loading capacity : from 100KG to 250KG.

· It is mainly used for the installation and maintenance of the spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations,exhibition hall and shopping malls



Control System

· Electric control:  A.manual button box, which may be placed on the platform for the convenience of operation

                             B.electric control box, which is supported with emergency stop button for prevention of any

                                        accident.

· Manual control: It can install manual lowering valve, in case of power cut off suddenly.



Power Supply Applicable place



A. Electric Powered / AC powered



· When the electricity is available at work place, usually for Indoor use



· No noise and air pollution



B. Battery Powered / DC powered



· When the electricity is not available at work place, usually for Outdoor use



· No noise and air pollution



Main parameters



 Product

Name

Model

Height

 (m)

Capacity

(kg)

Platform size

(m)

Supply voltage

(V)

Power

(kw)

Weight

(kg)

Overall size

(mm)

Single

Column

YBC0.1-661000.6*0.6220/3801.13201.27*0.8*1.98
YBC0.1-881000.6*0.6220/3801.13301.31*0.8*1.98
YBC0.1-10101000.6*0.6220/3801.14051.41*0.85*1.98

Double

Column

YBC0.2-662001.05*0.6220/3801.54301.31*0.85*1.98
YBC0.2-882001.15*0.6220/3801.54601.41*0.85*1.98
YBC0.2-10102001.32*0.6220/3801.56401.59*0.9*1.98
YBC0.2-12122001.42*0.60220/3801.57201.69*0.9*1.98
YBC0.2-14142001.55*0.65220/3801.57801.9*1*2.3

Three

Column

YBC0.2-10102001.58*0.8220/3801.510801.9*1.1*1.98
YBC0.2-12122001.58*0.8220/3801.511601.9*1.1*1.98
YBC0.2-14142001.6*0.8220/3802.210601.9*1.2*2.3
YBC0.2-16162001.82*1220/3802.211202.14*1.36*2.64

Four

Column

YBC0.2-14142001.58*0.8220/3802.210501.9*1.2*2.3
YBC0.2-16162001.6*0.8220/3802.212501.9*1.2*2.7.
YBC0.2-18182001.6*0.8220/3802.214802*1.4*2.96
YBC0.2-20202001.58*0.8220/3802.217002*1.4*3.2



Production Flow

Shot blasting, automatic welding



Packaging & Shipping

Plywood case packing.

Our Services

1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.

2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.

3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.

4. Quick responses:
We have a complete service network, hotline services for 24hours and assist you to solve the problem in a short time.

5. Parts supply:
We have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
