Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: XINJUXIN
  • Model Number: SJYZ0.3-10
  • Lift Mechanism: Scissor Lift
  • Lift Drive / Actuation: Electric Motor
  • Power: 2.2kw
  • Rated Loading Capacity: 300kg
  • Min. Lifting Height: 1.98m
  • Max. Lifting Height: 10m
  • Table Size: 2270*1120mm
  • Overall Dimensions: 2480*1150*1900mm
  • Weight: 2500kg
  • Certification: CE ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas third-party support available
  • Product name: High Efficient Agriculture Farming Used Scissor Lift For Picking Fruit
  • Keywords: fruit picking lift
  • Color: Optional
  • Lifting speed: 3-5m/min
  • Voltage: 110V/220V/240V
  • Material: High-duty Steel Structure
  • Usage: Aerial Maintenance
  • Type: Hydraulic Chain Drive
  • Grade Ability: 10%
  • Working Height: 12m

Packaging & Delivery

Packaging Details Plywood case or meet your needs for self propelled lift..
Delivery Time Shipped in 15 days after payment
Product Description
High Efficient Agriculture Farming Used Scissor Lift For Picking Fruit
1.Products advantages

      Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform

      Moving forward,turning around and lifting up are easily operated.

     Short chargeable time and long dural time of the battery.

      Easily moved, spacious working platforms, smooth working condition and high working efficiency

2.Moving method

      The chargeable battery provides the power to move and steer around.

3. Lifting Power

      The chargeable battery provides the power to raise up the lift platforms.

       Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.

4. Applications

        It is widely used for aerial installation and maintenance of the working sites without power supply and

        with smooth working grounds, such as hotels, grand hall, sport stadium, large factory,  warehouse,

       granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.

Main parameters



Working Height8m10m12m14m
Platform Height6m8m10m12m
 Platform Size2.27x1.12m2.27x1.12m2.27x1.12m2.27x1.12m
Lift Capacity300kg300kg300kg300kg
Overall Dimension
Maximum Tilt


Major Features
Small scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on.
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working, more convenient and quick.

1. Control voltage is DC24V.Keeping working person safe.
2. Electrical control box is water-proof design.

3. Installing Emergency button,Can keeping working person safe.
4. Self-locking function will work when electricity is suddenly cut off.

5. System have Emergency drop valve,which can let platform down safely.
when electricity is suddenly cut off.
6. Four hydraulic supporting legs in button.which can keep machine stable.

This type scissor lift own automatic walking function.It can be used in different working condition,and do not need external power supply and artificial traction.It is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform board, self-movement at a the full height.Low noise allows the operation personnel work in a silent environment and the large-angle steering system provides a good maneuverability.

Packaging & Shipping

 Packaging Details:Plywood case or into container directly or as clients' requests.

Delivery Detail:7-15 working days after payment.

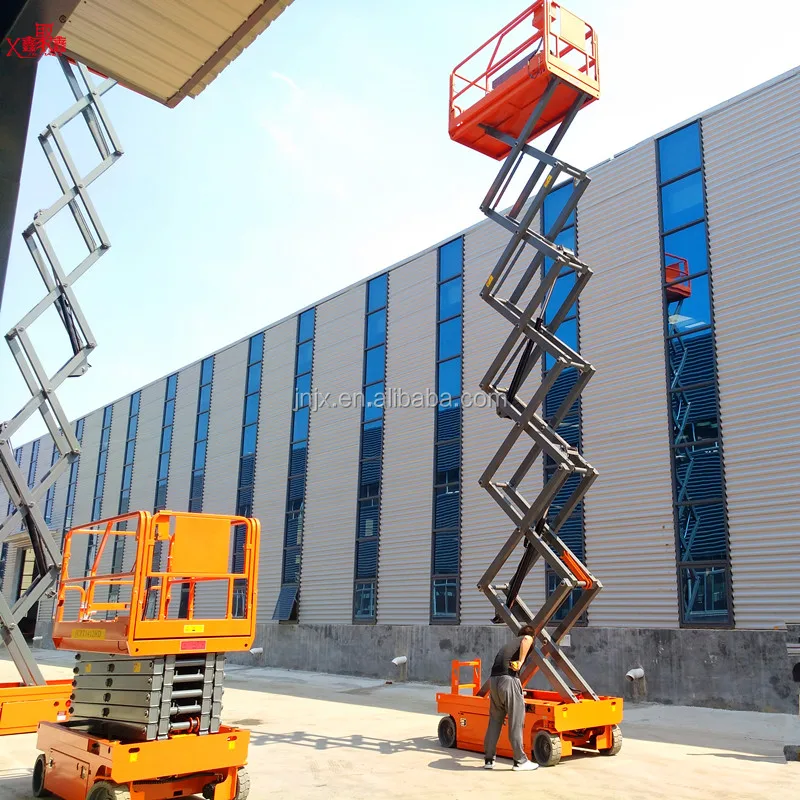

Detailed Images
